Description
- The ASUS PRIME B760-PLUS D5 ATX motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen and 12th Gen Intel Core processors, Pentium Gold and Celeron Processors.
- The ASUS B760-PLUS motherboard is PCIe 5.0 Ready supporting up to 128GB DDR5 7200+ MHz(OC) of memory and Intel Turbo Boost Technology. The DDR5 ASUS motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
- Enjoy extended connectivity with the next-gen technology of PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt (USB4) header support and 3x M.2 slots.
- Features the most comprehensive cooling options ever that are configurable via Fan Xpert 2+ or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink, PCH heatsink and hybrid fan headers.
- The ATX motherboard comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also having a handful features like Overvoltage Protection and SafeSlot Core+.
| Model | ASUS PRIME B760-PLUS Motherboard |
| Part Number | 90MB1EF0-M0IAY0 |
| CPU Socket | Intel B760 Chipset |
| CPU Support | Intel 13th Gen and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Socket LGA 1700 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| On-Board Graphics support | 1 x DisplayPort 1 x VGA port 1 x HDMI port |

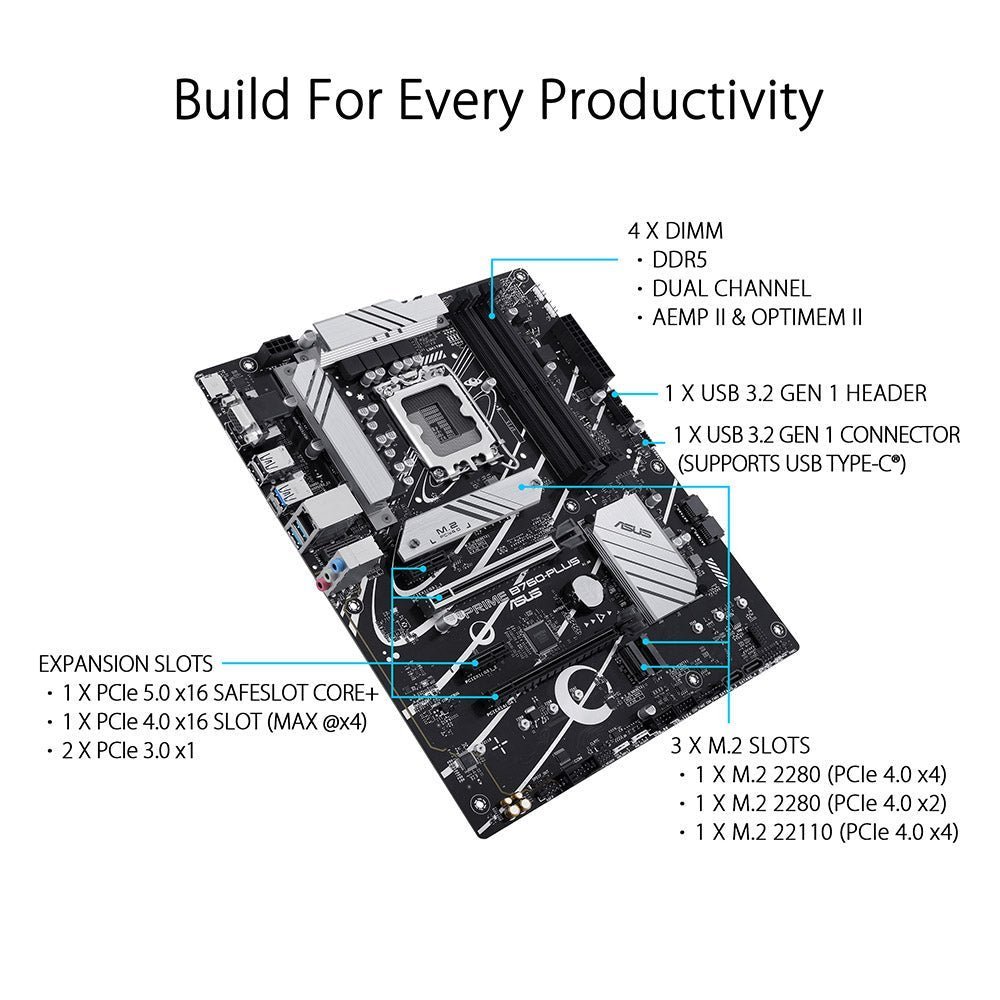

| Expansion Slot |
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s port |
| Audio |
Realtek 7.1 Surround Sound High-Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| USB Ports |
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |

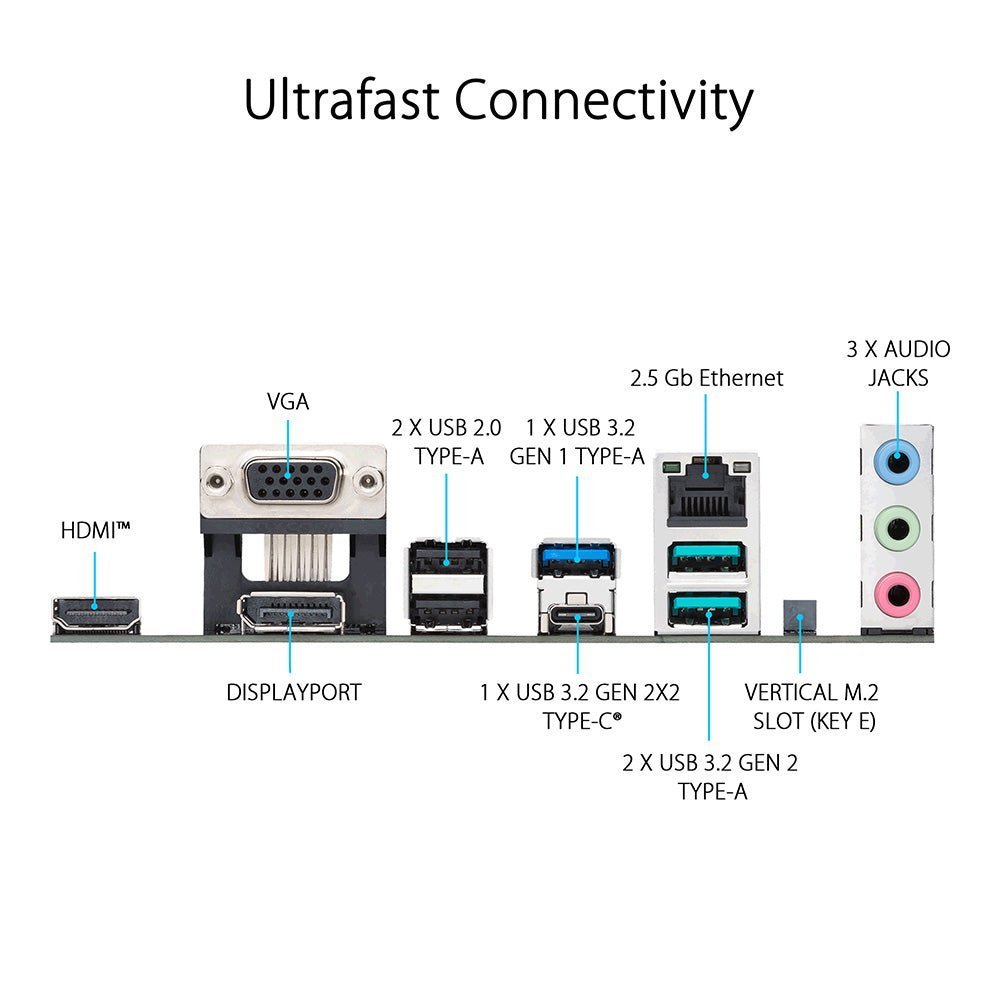

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O ports |

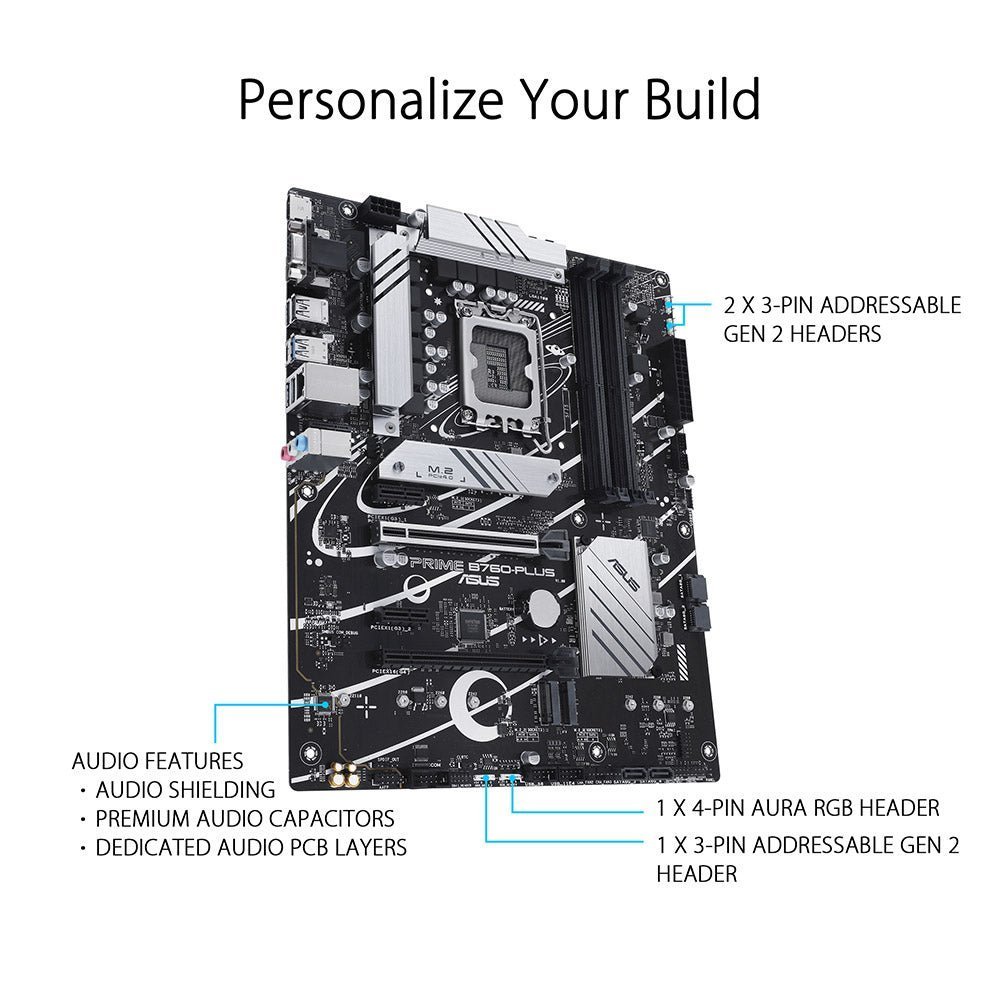

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |

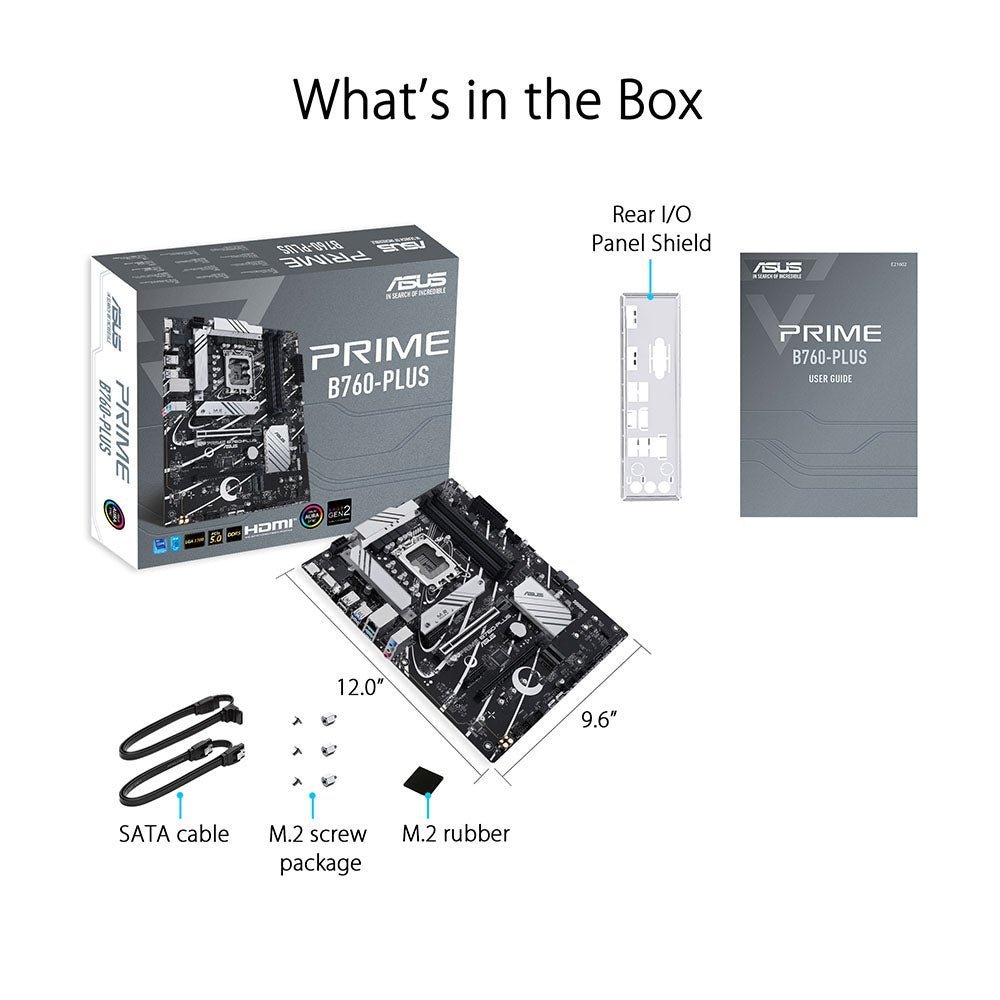

| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 24.4 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
PRIME B760-PLUS Specifications
| Brand | ASUS |
| Model / SKU | 90MB1EF0-M0IAY0 |
| Category | Electronics |
Specifications are for guidance; please check the manufacturer’s website for the latest details.
