Description

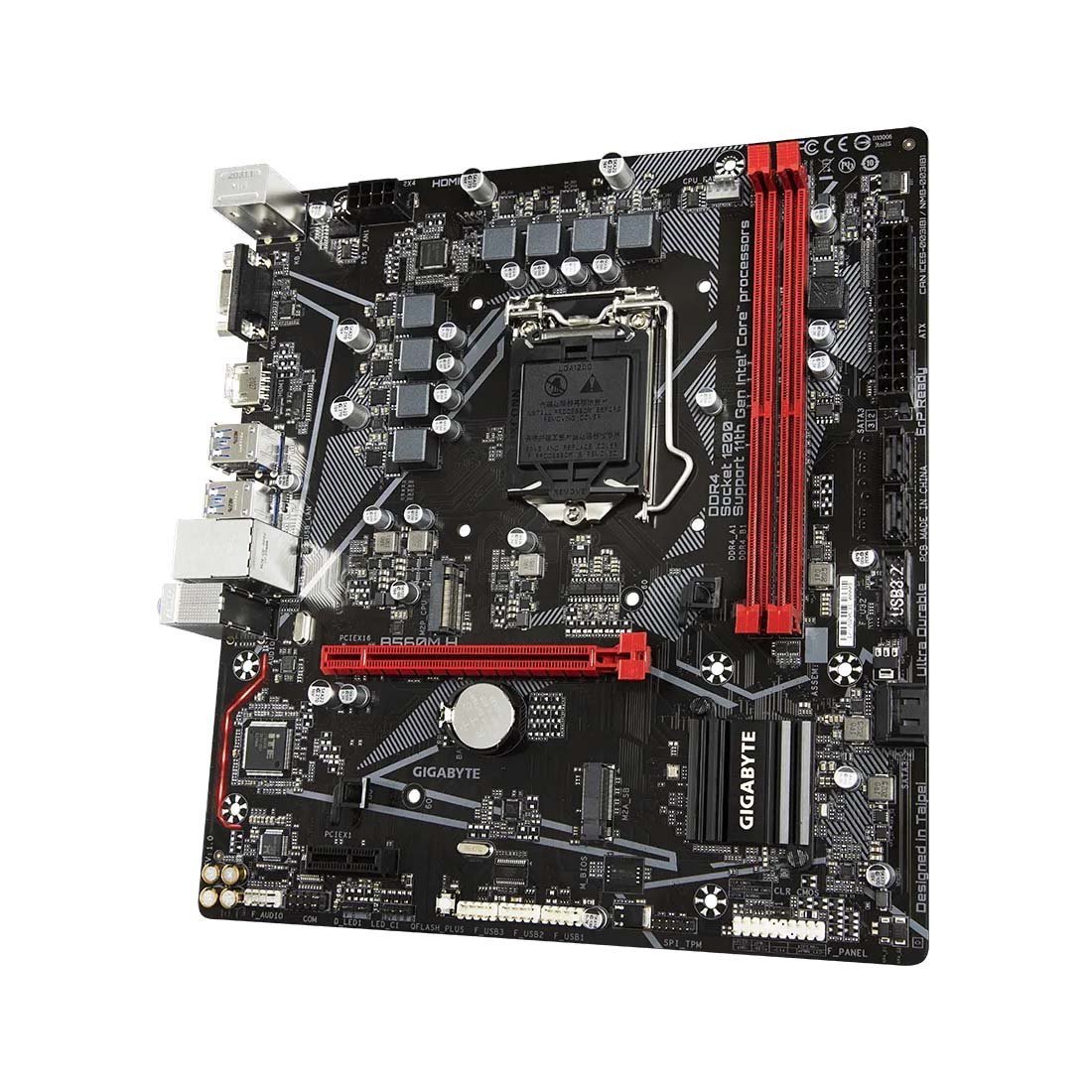

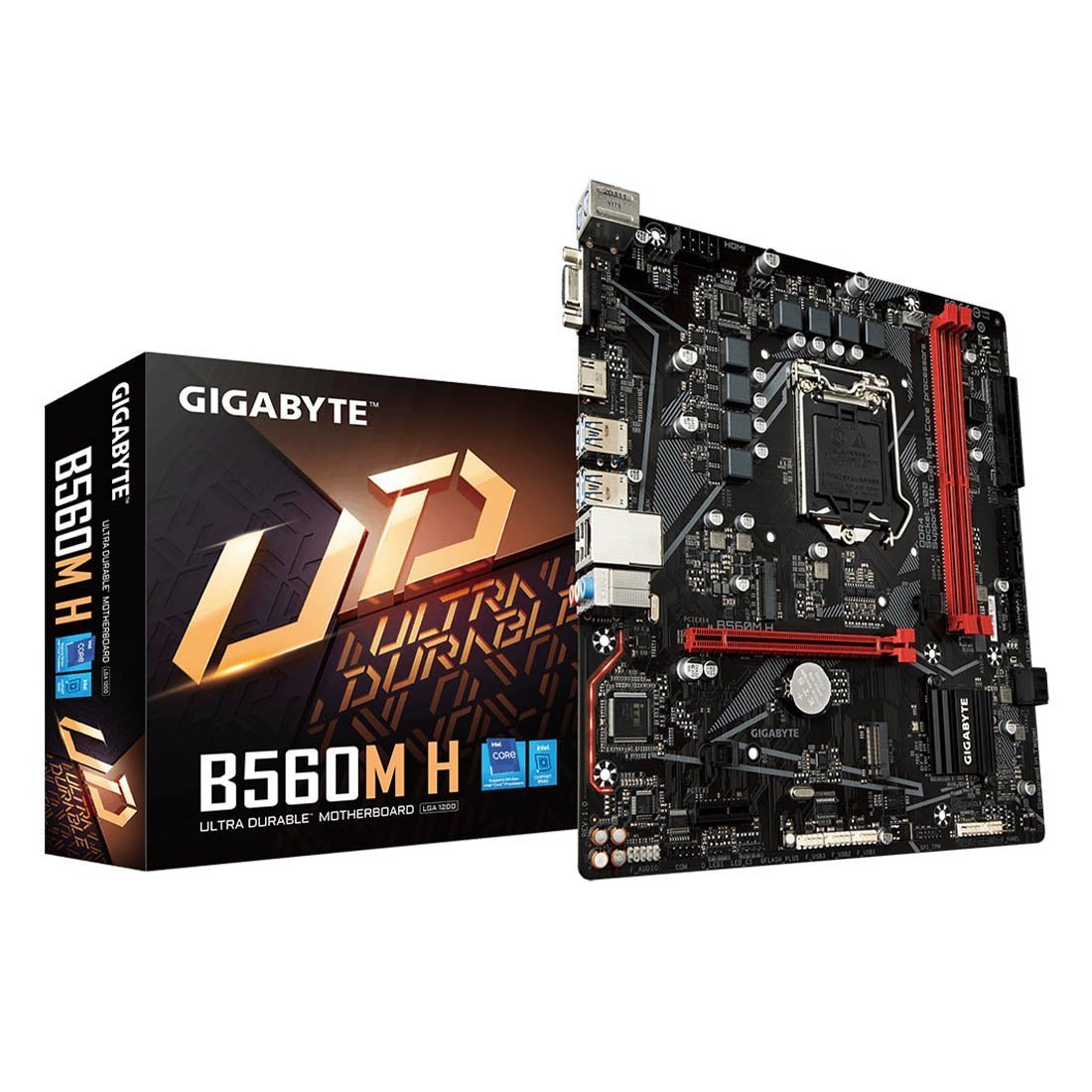

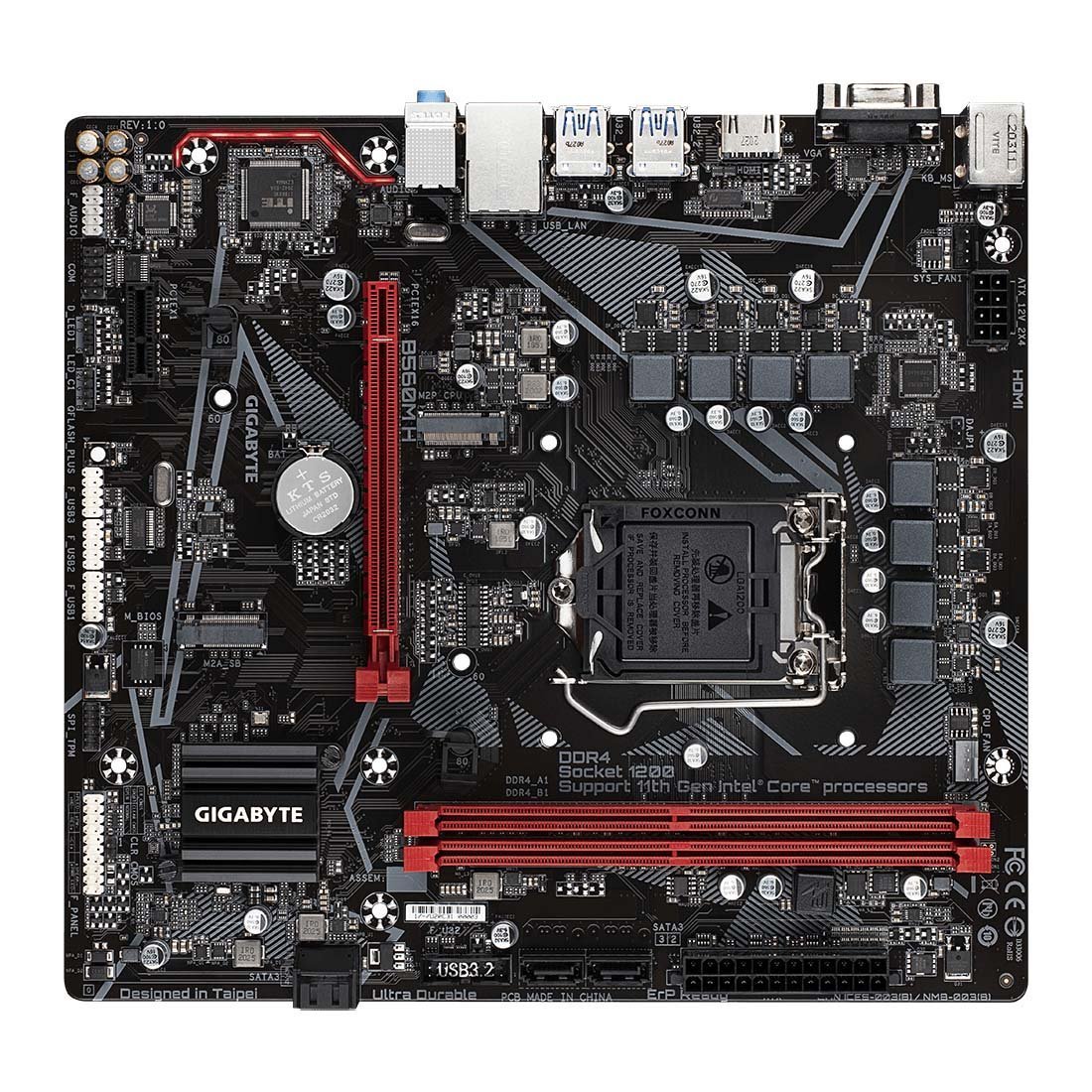

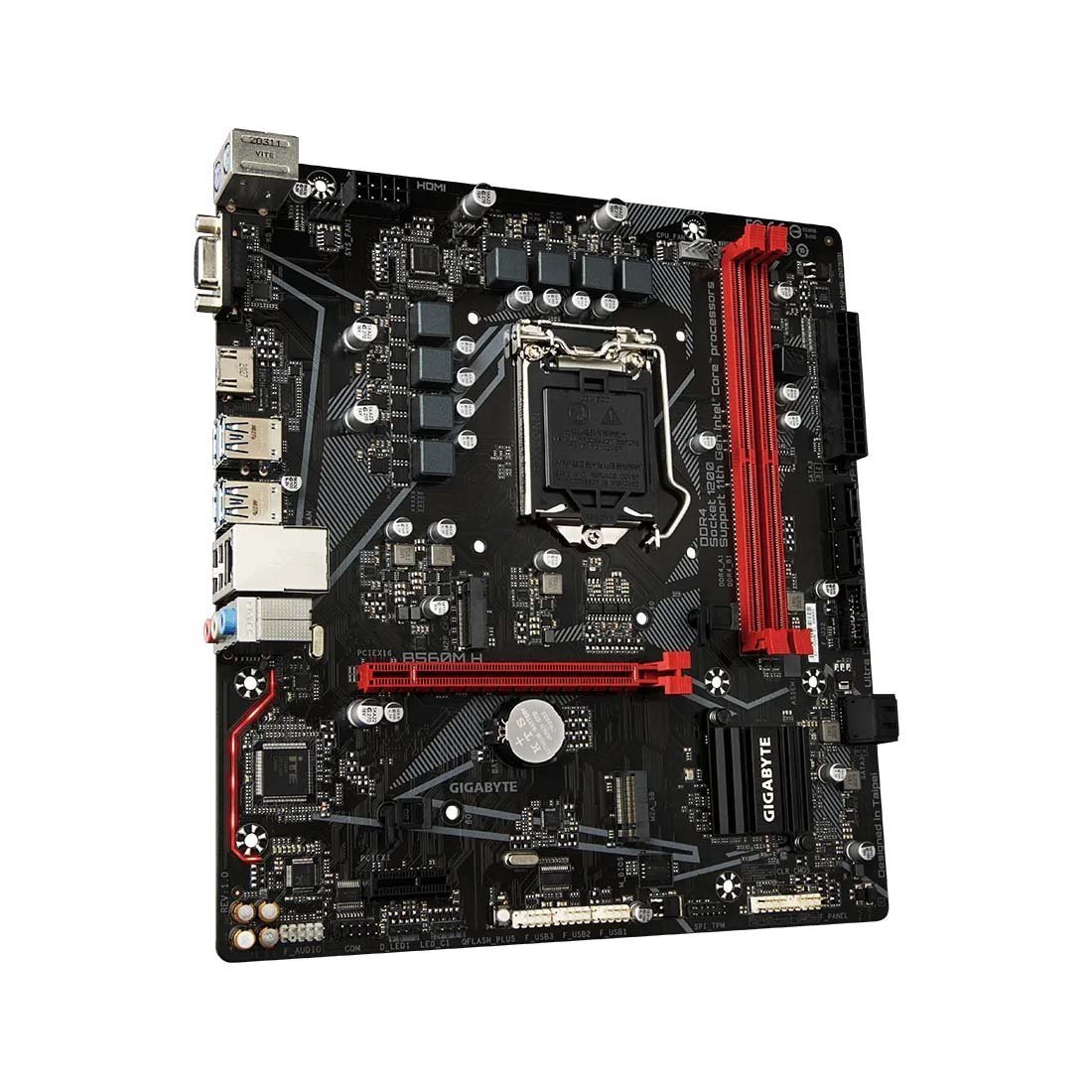

- GIGABYTE B560M H Micro-ATX DDR4 motherboard is designed to support latest Intel Socket LGA 1200 for 11th and 10th Gen, 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
- The GIGABYTE B560 motherboard is PCIe 4.0 Ready supporting up to 64GB DDR4 3200MHz of memory and Intel Extreme Memory Profile (XMP). The DDR4 GIGABYTE motherboard support next gen PCIe 4.0 slots.
- Enjoy extended connectivity with the next-gen technology of PCIe 4.0, Realtek Ethernet, M.2 Slots, USB 3.2 Gen 1 connector and more.
| Model | GIGABYTE B560M H Micro-ATX Motherboard |
| CPU Support | Supports 11th & 10th Gen i9/i7/i5/i3 Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1200 |
| Chipset | Intel B560 Chipset |
| Form Factor | Micro-ATX |
| Memory | 2x DDR4 memory slots, supporting up to 64GB 3200/3000/2933/2666/2400/2133 MHz Supports Dual-Channel mode Supports Intel Extreme Memory Profile (XMP) |
| Expansion Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 |
| Onboard Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
| Storage | 1 x M.2 connector 4 x SATA 6Gb/s connectors |
| USB | 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Audio | Realtek Audio Codec |

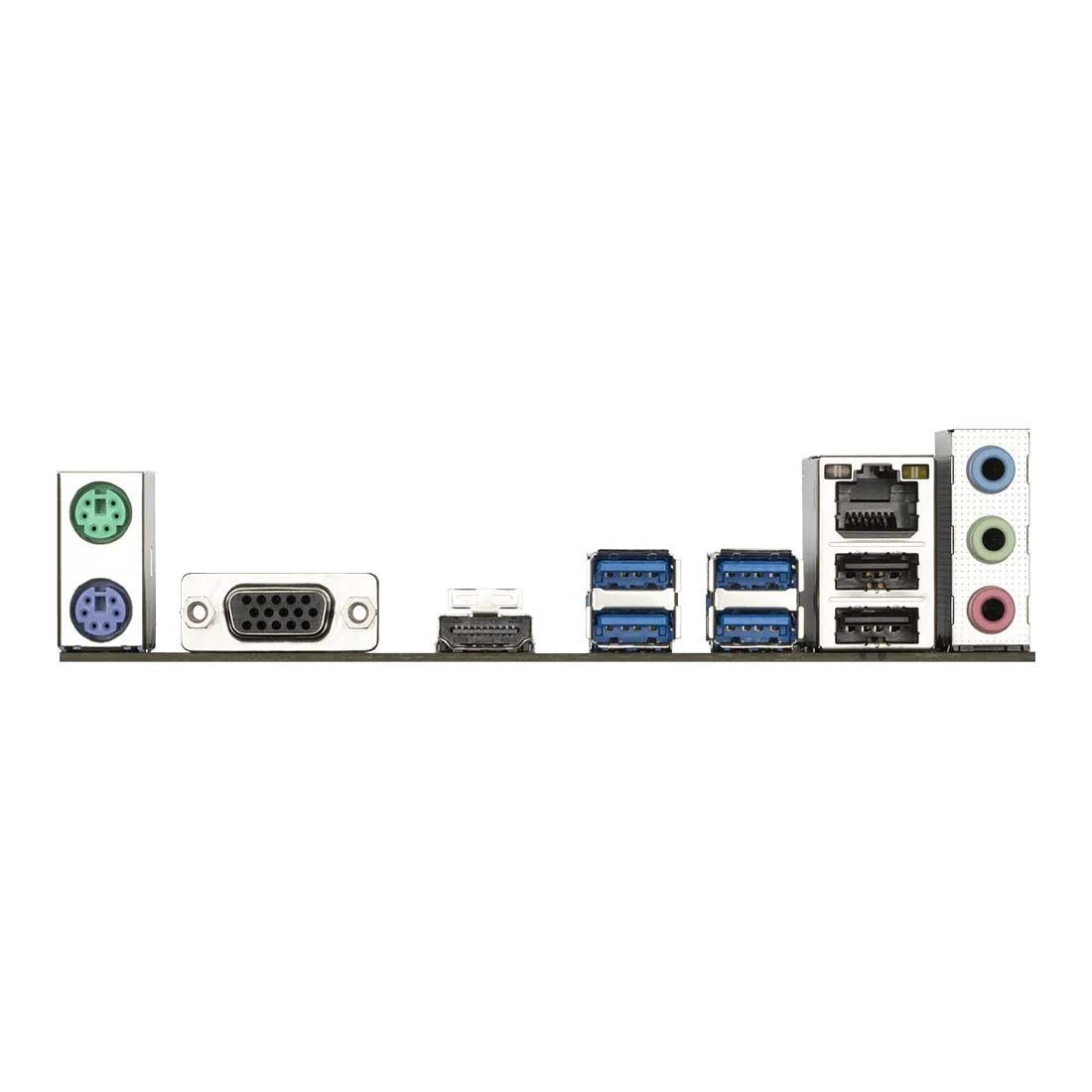

| BackPanel Ports | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Dimension | Micro-ATX 24.4cm x 22.5cm |
| Warranty | 3 Years Brand Warranty |
GIGABYTE B560M Specifications
| Brand | GIGABYTE |
| Model / SKU | B560M-H |
| Category | Motherboards |
Specifications are for guidance; please check the manufacturer’s website for the latest details.
Why Buy the GIGABYTE B560M from Computer Selection?
Computer Selection has been a computer hardware store on Lamington Road, Mumbai since 2003. When you buy the GIGABYTE B560M from us you get a genuine product, a GST tax invoice, secure packaging and tracked delivery across India.
Browse more options in our Motherboards range, or contact our team for free compatibility advice before you buy. You can also find official details on the GIGABYTE website.
GIGABYTE B560M – Frequently Asked Questions
Which processors work with the GIGABYTE B560M?
Processors that match the board's socket and chipset are supported. Check the manufacturer's CPU support list, or ask us to confirm before ordering.
Is the GIGABYTE B560M genuine and brand new?
Yes. We sell genuine products sourced through authorised channels, and manufacturer warranty applies as per the brand's terms.
Do you provide a GST invoice for the GIGABYTE B560M?
Yes. Every order includes a GST tax invoice, and business buyers can enter their GSTIN at checkout to claim input tax credit.
Do you ship across India?
Yes. Orders are securely packed and shipped with tracking to serviceable pin codes across India. You can also collect from our Lamington Road store.
