Description

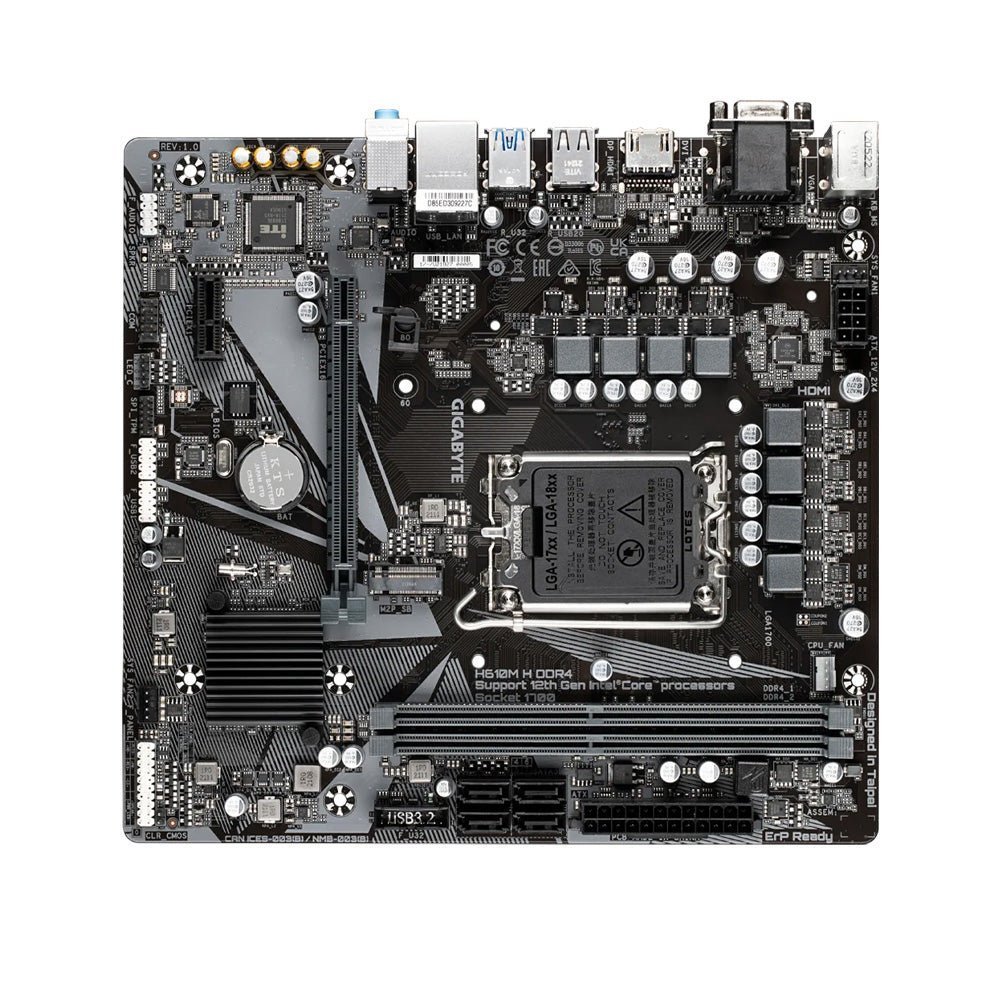

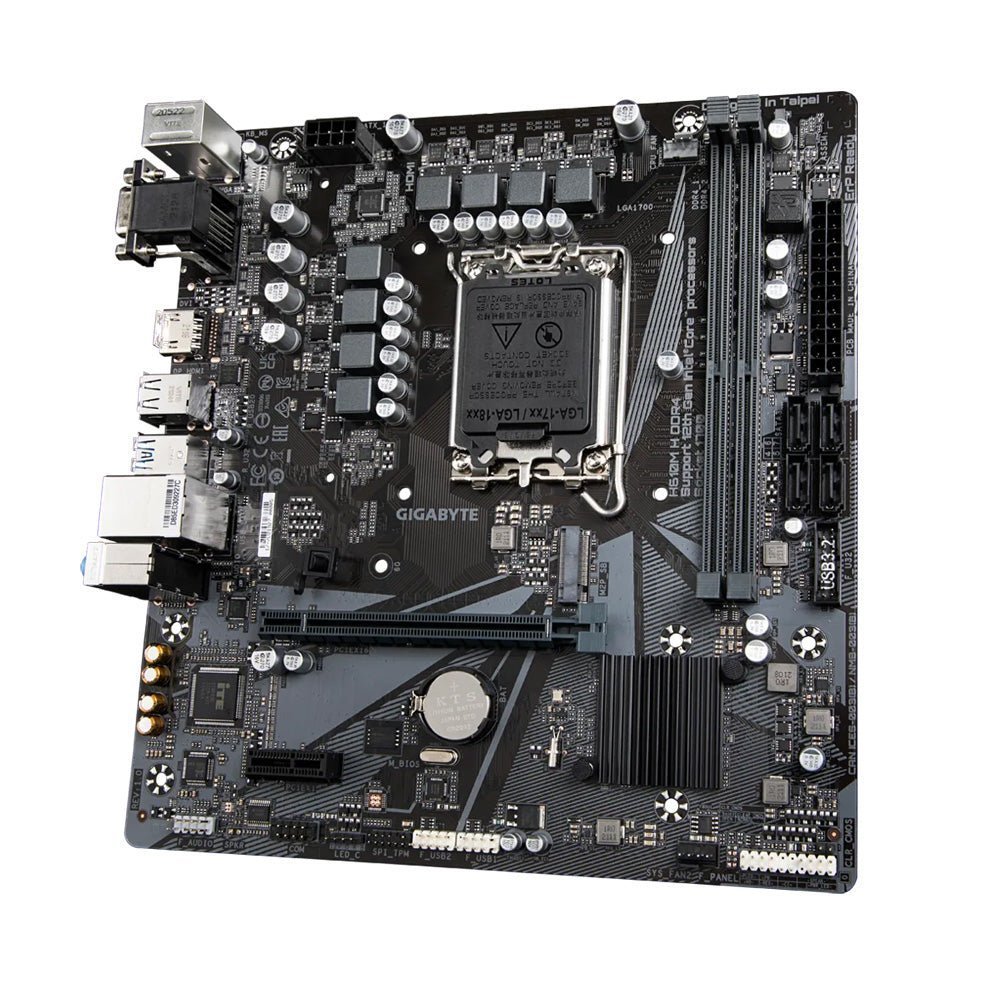

- GIGABYTE H610M H DDR4 motherboard for gaming is designed to support latest Intel Socket LGA 1700 for 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors.
- The board is PCIe 4.0 Ready supporting up to 64GB DDR4 3200MHz (OC) of memory push your gaming experience to its peak. The board support next gen PCIe 4.0 video-cards making it future proof.
- Enjoy extended connectivity with the next-gen technology of PCIe 4.0, HDMI port, D-Sub port, Intel GbE LAN, USB 3.2 Gen 1 and one M.2 slot.
- Features the most comprehensive cooling options with Smart Fan 6 that ensure gaming PC maintain its performance while staying cool and quiet. This motherboard offers rock-solid and stable performance for marathon gaming.
- The Micro-ATX motherboard comes with DIY Friendly features. With the Q-Flash Plus, can update the BIOS easily without installing the CPU, memory and graphics card.
M.2 Slot
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
PCIE 4.0 Ready
GIGABYTE H610M S2H Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices.
Intel GbE LAN
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
Hi-Fi Audio
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
GIGABYTE System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
| Model | GIGABYTE H610M H Motherboard |
| CPU Socket | LGA 1700 |
| CPU Support | Intel 13th Gen, 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel H610 |
| Memory | 2 x DIMM, Max. 64GB, Supports DDR4 3200 ECC and non-ECC, un-buffered memory Dual Channel Memory Architecture Supports Extreme Memory Profile (XMP) |
| On-Board Graphics support | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI 2.1 port, supporting a maximum resolution of 4096×2106@60 Hz |
| Expansion Slot | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slots |
| Ethernet | 1 x Intel GbE Ethernet |
| Storage | 1 x M.2 connector 4 x SATA 6Gb/s connectors |
| Audio | Realtek Audio CODEC High-Definition Audio 2/4/5.1/7.1-channel |
| USB Ports |
Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |

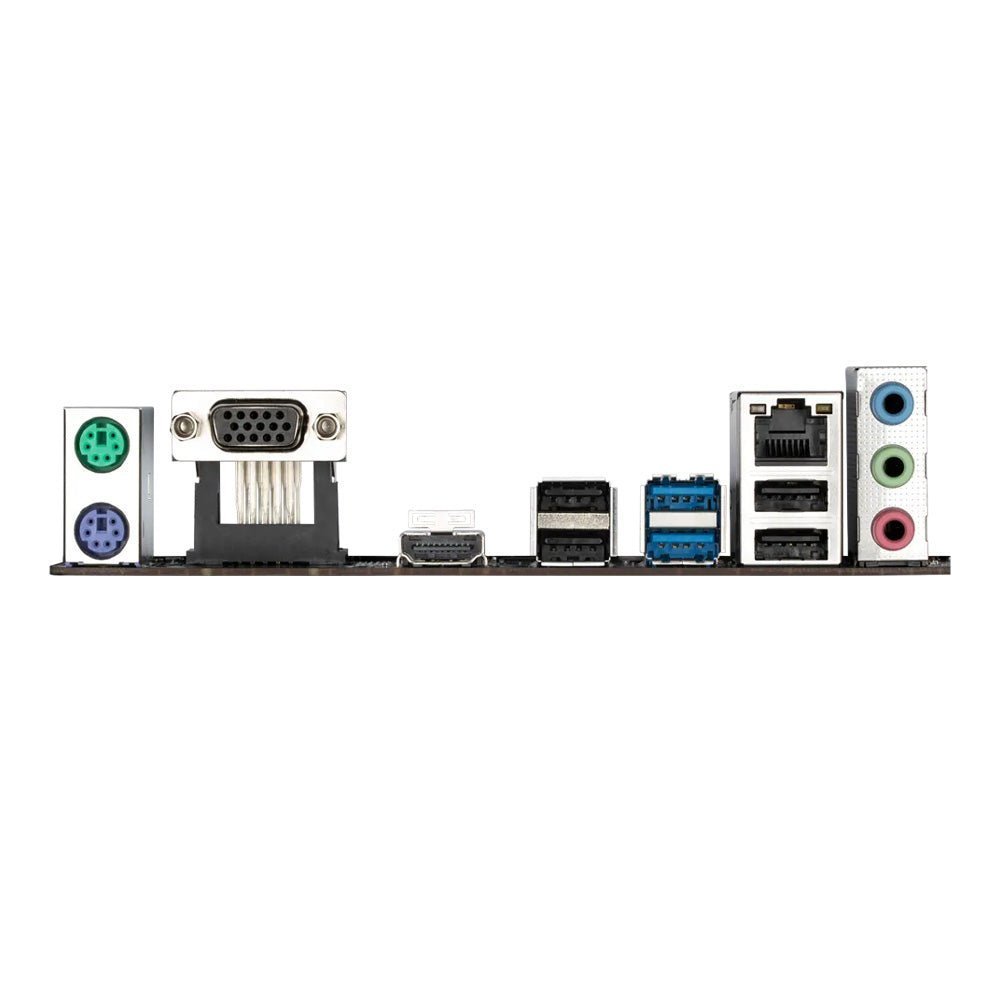

| Back Panel I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip headers 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x serial port header 1 x Clear CMOS jumper |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 23 cm x 21.5 cm Micro-ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
GIGABYTE H610M Specifications
| Brand | GIGABYTE |
| Model / SKU | GIGABYTE-H610M-H-DDR4 |
| Category | Electronics |
Specifications are for guidance; please check the manufacturer’s website for the latest details.
Why Buy the GIGABYTE H610M from Computer Selection?
Computer Selection has been a computer hardware store on Lamington Road, Mumbai since 2003. When you buy the GIGABYTE H610M from us you get a genuine product, a GST tax invoice, secure packaging and tracked delivery across India.
Browse more options in our Electronics range, or contact our team for free compatibility advice before you buy. You can also find official details on the GIGABYTE website.
GIGABYTE H610M – Frequently Asked Questions
Which processors work with the GIGABYTE H610M?
Processors that match the board's socket and chipset are supported. Check the manufacturer's CPU support list, or ask us to confirm before ordering.
Is the GIGABYTE H610M genuine and brand new?
Yes. We sell genuine products sourced through authorised channels, and manufacturer warranty applies as per the brand's terms.
Do you provide a GST invoice for the GIGABYTE H610M?
Yes. Every order includes a GST tax invoice, and business buyers can enter their GSTIN at checkout to claim input tax credit.
Do you ship across India?
Yes. Orders are securely packed and shipped with tracking to serviceable pin codes across India. You can also collect from our Lamington Road store.
Reviews
There are no reviews yet.
